Liste des CONNECTEURS ANDERSON
CONNECTEURS ANDERSON
Boîtiers livrés avec contacts

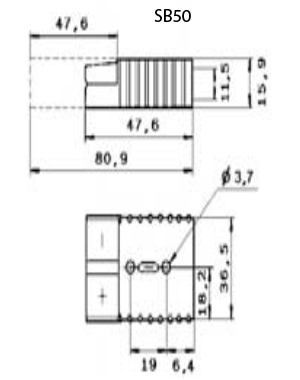

SB 50A |

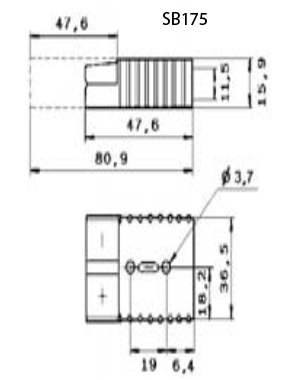

SB 175A |

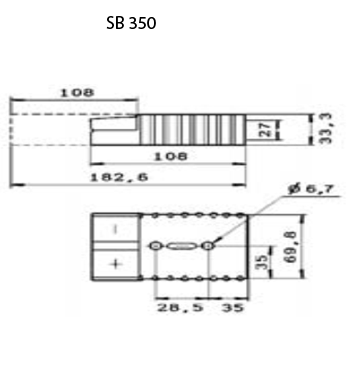

SB 350A |

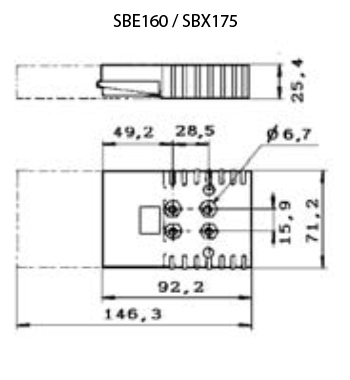

SBE 160A |

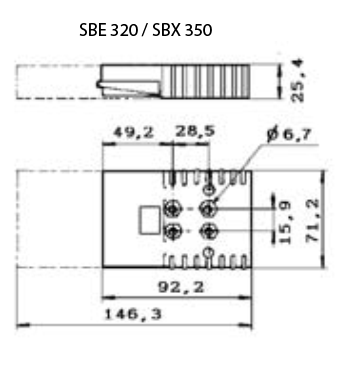

SBE 320A |
SBX 350A |
|
|
|
|
|
|
| Type | Section (mm2) | Jaune 12V | Orange 18V | Rouge 24V | Gris 36V | Bleu 48V | Vert 72V | Noir 80V |
|---|
| Type | Section (mm2) | Jaune 12V | Orange 18V | Rouge 24V | Gris 36V | Bleu 48V | Vert 72V | Noir 80V |
|---|---|---|---|---|---|---|---|---|
| SB 175A | 35 | ACPR00053 | ACPR00065 | ACPR00077 | ACPR00101 | ACPR00089 | - | - |
| SB 175A | 50 | ACPR00054 | ACPR00066 | ACPR00078 | ACPR00102 | ACPR00090 | - | - |
| SB 350A | 70 | ACPR00055 | ACPR00067 | ACPR00079 | ACPR00103 | ACPR00091 | ACPR00043 | - |
| SB 350A | 90 | ACPR00056 | ACPR00068 | ACPR00080 | ACPR00104 | ACPR00092 | ACPR00044 | - |
| SB 50A | 6 | ACPR00052 | ACPR00064 | ACPR00076 | ACPR00100 | ACPR00088 | ACPR00042 | ACPR00112 |
| SB 50A | 16 | ACPR00051 | ACPR00063 | ACPR00075 | ACPR00099 | ACPR00087 | ACPR00041 | ACPR00111 |
| SBE 160A / SBX 175A | 35 | ACPR00057 | ACPR00069 | ACPR00081 | ACPR00105 | ACPR00093 | ACPR00045 | ACPR00113 |
| SBE 160A / SBX 175A | 50 | ACPR00058 | ACPR00070 | ACPR00082 | ACPR00106 | ACPR00094 | ACPR00046 | ACPR00114 |
| SBE 320A | 0 | ACPR00059 | ACPR00071 | ACPR00083 | ACPR00107 | ACPR00095 | ACPR00047 | ACPR00115 |
| SBE 320A | 70 | ACPR00060 | ACPR00072 | ACPR00084 | ACPR00108 | ACPR00096 | ACPR00048 | ACPR00116 |
| SBX 350A | 70 | ACPR00061 | ACPR00073 | ACPR00085 | ACPR00109 | ACPR00097 | ACPR00049 | ACPR00117 |
| SBX 350A | 90 | ACPR00062 | ACPR00074 | ACPR00086 | ACPR00110 | ACPR00098 | ACPR00050 | ACPR00118 |
