Liste des Batteries de démarrage pour Motos
Batteries standard 6V et 12V
| Type | Schéma | Dimensions Lxlxh(mm) | V | Ah | Réf. Seenrgy |
|---|
| Type | Schéma | Dimensions Lxlxh(mm) | V | Ah | Réf. Seenrgy |
|---|---|---|---|---|---|
| 6N11-2D |
|
150x70x100 | 6 | 11.0 | BPMO00091 |
| 6N11A-1B |
|
122x62x132 | 6 | 11.0 | BPMO00092 |
| 6N11A-3A |
|
122x62x132 | 6 | 11.0 | BPMO00093 |
| 6N11A-4 |
|
122x62x132 | 6 | 11.0 | BPMO00094 |
| 6N12A-2D |
|
155x56x114 | 6 | 12.0 | BPMO00095 |
| 6N2-2A-4 |
|
70x46x95 | 6 | 2.0 | BPMO00081 |
| 6N2A-2C-3 |
|
70x45x103 | 6 | 2.0 | BPMO00080 |
| 6N4-2A-4 |
|
70x70x95 | 6 | 4.0 | BPMO00082 |
| 6N4-2A-7 |
|
70x70x95 | 6 | 4.0 | BPMO00083 |
| 6N4A-4D |
|
60x58x130 | 6 | 4.0 | BPMO00084 |
| 6N4B-2A |
|
100x47x96 | 6 | 4.0 | BPMO00085 |
| 6N4C-1B |
|
70x70x103 | 6 | 4.0 | BPMO00086 |
| 6N6-1D-2 |
|
99x57x110 | 6 | 6.0 | BPMO00088 |
| 6N6-3B |
|
99x57x110 | 6 | 6.0 | BPMO00087 |
| B38-6A |
|
119x83x161 | 6 | 13.0 | BPMO00096 |
| B39-6 |
|
126x48x128 | 6 | 7.0 | BPMO00089 |
| B49-6 |
|
91x83x160 | 6 | 10.0 | BPMO00090 |
| 12C16A-3B |
|
185x82x170 | 12 | 19.0 | BPMO00035 |
| 12N24-3 |
|
185x125x175 | 12 | 24.0 | BPMO00042 |
| 12N24-4 |
|
185x125x175 | 12 | 24.0 | BPMO00043 |
| 12N5.5-3B |
|
138x61x131 | 12 | 5.5 | BPMO00008 |
| 12N5.5-4B |
|
138x61x131 | 12 | 5.5 | BPMO00009 |
| 12N5.5A-3B |
|
104x91x114 | 12 | 5.5 | BPMO00010 |
| 12N7-3B |
|
135x75x134 | 12 | 7.0 | BPMO00011 |
| 12N7-4A |
|
135x75x134 | 12 | 7.0 | BPMO00012 |
| 12N7-4B |
|
137x77x132 | 12 | 8.0 | BPMO00013 |
| CHD4-12 |
|
202x130x165 | 12 | 30.0 | BPMO00047 |
| U1-9 |
|
184x132x185 | 12 | 24.0 | BPMO00048 |
| U1R-9 |
|
184x132x185 | 12 | 24.0 | BPMO00049 |
Batteries courant fort
| Type | Schéma | Dimensions Lxlxh(mm) | V | Ah | Réf. Seenrgy |
|---|
| Type | Schéma | Dimensions Lxlxh(mm) | V | Ah | Réf. Seenrgy |
|---|---|---|---|---|---|
| HYB16A-A |
|
150x90x180 | 12 | 16.0 | BPMO00032 |
| SY50-N18L-AT |
|
205x90x162 | 12 | 20.0 | BPMO00041 |
| Y50-N18L-A |
|
205x90x162 | 12 | 20.0 | BPMO00040 |
| Y60-N30L-A |
|
187x130x170 | 12 | 30.0 | BPMO00044 |

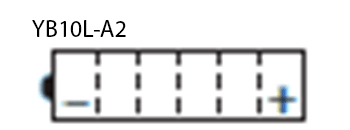

| YB10L-A2 |
|
135x90x145 | 12 | 11.0 | BPMO00019 |
| YB10L-B2 |
|
135x90x145 | 12 | 11.0 | BPMO00020 |
| YB12A-A |
|
134x80x160 | 12 | 12.0 | BPMO00021 |
| YB12A-B |
|
134x80x162 | 12 | 12.0 | BPMO00022 |
| YB12AL-A2 |
|
135x81x162 | 12 | 12.0 | BPMO00023 |
| YB12B-B2 |
|
160x90x130 | 12 | 13.0 | BPMO00024 |
| YB14-A2 |
|
135x90x166 | 12 | 14.0 | BPMO00025 |
| YB14-B2 |
|
135x90x166 | 12 | 14.0 | BPMO00026 |
| YB14L-A1 |
|
135x90x166 | 12 | 14.0 | BPMO00027 |
| YB14L-A2 |
|
135x90x166 | 12 | 14.0 | BPMO00028 |
| YB14L-B2 |
|
135x90x166 | 12 | 14.0 | BPMO00029 |
| YB16-B |
|
175x100x155 | 12 | 19.0 | BPMO00036 |
| YB16AL-A2 |
|
205x70x162 | 12 | 16.0 | BPMO00030 |

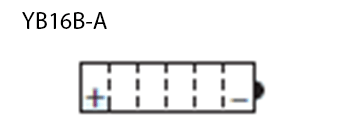

| YB16B-A |
|
160x90x159 | 12 | 16.0 | BPMO00031 |
| YB16CL-B |
|
175x100x175 | 12 | 19.0 | BPMO00038 |
| YB16HL-A-LM |
|
176x101x156 | 12 | 19.0 | BPMO00039 |
| YB16L-B |
|
175x100x155 | 12 | 19.0 | BPMO00037 |
| YB18-A |
|
181x90x164 | 12 | 18.0 | BPMO00033 |

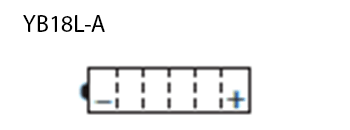

| YB18L-A |
|
181x90x164 | 12 | 18.0 | BPMO00034 |
| YB2.5L-C |
|
81x71x105 | 12 | 2.5 | BPMO00001 |
| YB2.5L-C2 |
|
80x70x106 | 12 | 2.5 | BPMO00002 |
| YB30CL-B |
|
168x132x192 | 12 | 30.0 | BPMO00046 |
| YB30L-B |
|
168x132x176 | 12 | 30.0 | BPMO00045 |
| YB3L-A |
|
98x57x111 | 12 | 3.0 | BPMO00003 |
| YB3L-B |
|
99x57x111 | 12 | 3.0 | BPMO00004 |
| YB4L-A |
|
120x70x92 | 12 | 4.0 | BPMO00005 |
| YB4L-B |
|
120x70x92 | 12 | 4.0 | BPMO00006 |
| YB5L-B |
|
120x61x130 | 12 | 5.0 | BPMO00007 |
| YB7-A |
|
137x70x134 | 12 | 8.0 | BPMO00014 |
| YB9-B |
|
135x75x139 | 12 | 9.0 | BPMO00016 |
| YB9A-A |
|
137x77x155 | 12 | 9.0 | BPMO00015 |
| YB9L-A2 |
|
135x75x139 | 12 | 9.0 | BPMO00018 |
| YB9L-B |
|
137x76x139 | 12 | 9.0 | BPMO00017 |
Batteries AGM sans entretien
| Type | Schéma | Dimensions Lxlxh(mm) | V | Ah | Réf. Seenrgy |
|---|
| Type | Schéma | Dimensions Lxlxh(mm) | V | Ah | Réf. Seenrgy |
|---|---|---|---|---|---|
| YS12-18 |
|
181x77x167 | 12 | 18.0 | BPMO00063 |
| YS12-19 |
|
186x82x171 | 12 | 20.0 | BPMO00067 |
| YT12A-BS |
|
151x87x106 | 12 | 10.0 | BPMO00058 |
| YTH16-BS |
|
151x87x158 | 12 | 14.0 | BPMO00061 |
| YTR4A-BS |
|
113x48x85 | 12 | 2.3 | BPMO00050 |
| YTX12-BS |
|
151x87x130 | 12 | 10.0 | BPMO00057 |
| YTX14-BS |
|
151x87x146 | 12 | 12.0 | BPMO00059 |
| YTX15L-BS |
|
175x87x130 | 12 | 13.0 | BPMO00060 |
| YTX18L-BS |
|
205x86x164 | 12 | 18.0 | BPMO00062 |
| YTX20-BS |
|
175x86x154 | 12 | 18.0 | BPMO00064 |
| YTX20A-BS |
|
150x87x161 | 12 | 18.0 | BPMO00065 |
| YTX20L-BS |
|
175x86x154 | 12 | 18.0 | BPMO00066 |
| YTX24HL-BS |
|
205x87x162 | 12 | 22.0 | BPMO00068 |
| YTX30L |
|
168x127x177 | 12 | 28.0 | BPMO00069 |

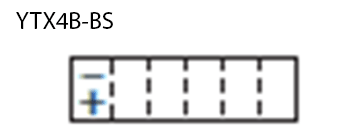

| YTX4B-BS |
|
113x39x85 | 12 | 2.3 | BPMO00051 |
| YTX4L-BS |
|
114x70x85 | 12 | 3.0 | BPMO00052 |
| YTX5L-BS |
|
114x70x105 | 12 | 4.0 | BPMO00053 |
| YTX7A-BS |
|
151x87x93 | 12 | 6.0 | BPMO00055 |
| YTX7L-BS |
|
114x70x130 | 12 | 6.0 | BPMO00054 |
| YTX9-BS |
|
151x87x106 | 12 | 8.0 | BPMO00056 |
Batteries étanches VRLA
| Type | Schéma | Dimensions Lxlxh(mm) | V | Ah | Réf. Seenrgy |
|---|
| Type | Schéma | Dimensions Lxlxh(mm) | V | Ah | Réf. Seenrgy |
|---|---|---|---|---|---|
| YT10ZS |
|
150x87x95 | 12 | 8.5 | BPMO00075 |
| YT12B-4 |
|
150x69x130 | 12 | 11.0 | BPMO00077 |
| YT12ZS |
|
150x87x110 | 12 | 11.0 | BPMO00076 |

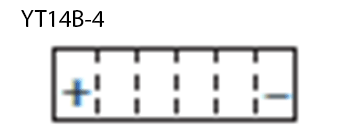

| YT14B-4 |
|
150x69x145 | 12 | 13.0 | BPMO00079 |
| YT14ZS |
|
150x87x110 | 12 | 12.0 | BPMO00078 |
| YT4B-BS |
|
113x38x86 | 12 | 2.3 | BPMO00070 |
| YT6B-3 |
|
113x70x105 | 12 | 6.0 | BPMO00072 |
| YT7B-4 |
|
150x65x92 | 12 | 6.0 | BPMO00073 |
| YT9B-4 |
|
150x65x102 | 12 | 8.0 | BPMO00074 |
