Liste des Eléments de traction PZB
Batteries de traction PZB
Note :

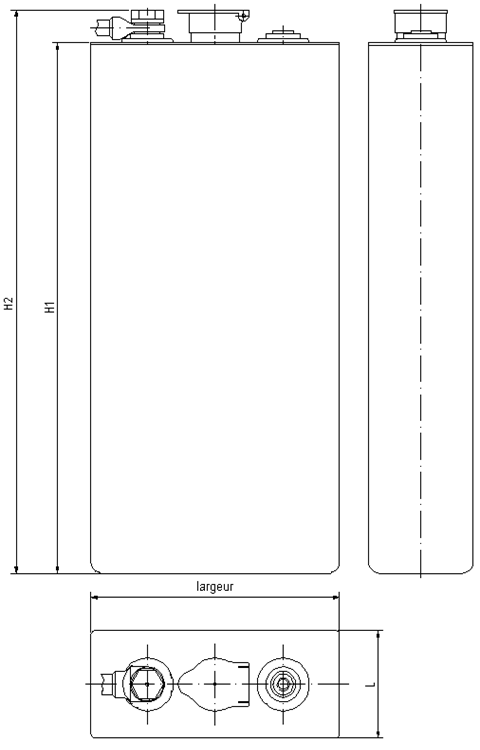

H2 = hauteur hors tout (au bouchon)
hauteur au couvercle H1 = H2 - 30mm
+ Voir schéma
| Ah/plq | Type | Ah/5h | L(mm) | l(mm) | H2 (mm) | Poids (kg) | Réf. Seenrgy |
|---|
| Ah/plq | Type | Ah/5h | L(mm) | l(mm) | H2 (mm) | Poids (kg) | Réf. Seenrgy |
|---|---|---|---|---|---|---|---|
| 23 | 2PzB46 | 46 | 45 | 157.5 | 235 | 4.3 | EPTR00082 |
| 23 | 3PzB69 | 69 | 61 | 157.5 | 235 | 5.8 | EPTR00083 |
| 23 | 4PzB92 | 92 | 77 | 157.5 | 235 | 7.4 | EPTR00084 |
| 23 | 5PzB115 | 115 | 93 | 157.5 | 235 | 8.8 | EPTR00085 |
| 23 | 6PzB138 | 138 | 109 | 157.5 | 235 | 10.4 | EPTR00086 |
| 23 | 7PzB161 | 161 | 125 | 157.5 | 235 | 11.9 | EPTR00087 |
| 23 | 8PzB184 | 184 | 141 | 157.5 | 235 | 13.4 | EPTR00088 |
| 23 | 9PzB207 | 207 | 157 | 157.5 | 235 | 15.5 | EPTR00089 |
| 23 | 10PzB230 | 230 | 173 | 157.5 | 235 | 17.0 | EPTR00090 |
| 32 | 2PzB64 | 64 | 45 | 157.5 | 295 | 5.5 | EPTR00091 |
| 32 | 3PzB96 | 96 | 61 | 157.5 | 295 | 7.6 | EPTR00092 |
| 32 | 4PzB128 | 128 | 77 | 157.5 | 295 | 9.8 | EPTR00093 |
| 32 | 5PzB160 | 160 | 93 | 157.5 | 295 | 11.9 | EPTR00094 |
| 32 | 6PzB192 | 192 | 109 | 157.5 | 295 | 14.1 | EPTR00095 |
| 32 | 7PzB224 | 224 | 125 | 157.5 | 295 | 16.2 | EPTR00096 |
| 32 | 8PzB256 | 256 | 141 | 157.5 | 295 | 18.4 | EPTR00097 |
| 32 | 9PzB288 | 288 | 157 | 157.5 | 295 | 21.1 | EPTR00098 |
| 32 | 10PzB320 | 320 | 173 | 157.5 | 295 | 23.5 | EPTR00099 |
| 42 | 2PzB84 | 84 | 45 | 157.5 | 355 | 6.9 | EPTR00100 |
| 42 | 3PzB126 | 126 | 61 | 157.5 | 355 | 9.7 | EPTR00101 |
| 42 | 4PzB168 | 168 | 77 | 157.5 | 355 | 12.5 | EPTR00102 |
| 42 | 5PzB210 | 210 | 93 | 157.5 | 355 | 15.2 | EPTR00103 |
| 42 | 6PzB252 | 252 | 109 | 157.5 | 355 | 18.1 | EPTR00104 |
| 42 | 7PzB294 | 294 | 125 | 157.5 | 355 | 20.8 | EPTR00105 |
| 42 | 8PzB336 | 336 | 141 | 157.5 | 355 | 23.6 | EPTR00106 |
| 42 | 9PzB378 | 378 | 157 | 157.5 | 355 | 27.0 | EPTR00107 |
| 42 | 10PzB420 | 420 | 173 | 157.5 | 355 | 29.8 | EPTR00108 |
| 55 | 2PzB110 | 110 | 45 | 157.5 | 430 | 8.5 | EPTR00109 |
| 55 | 3PzB165 | 165 | 61 | 157.5 | 430 | 11.9 | EPTR00110 |
| 55 | 4PzB220 | 220 | 77 | 157.5 | 430 | 15.4 | EPTR00111 |
| 55 | 5PzB275 | 275 | 93 | 157.5 | 430 | 18.8 | EPTR00112 |
| 55 | 6PzB330 | 330 | 109 | 157.5 | 430 | 22.3 | EPTR00113 |
| 55 | 7PzB385 | 385 | 125 | 157.5 | 430 | 25.3 | EPTR00114 |
| 55 | 8PzB440 | 440 | 141 | 157.5 | 430 | 29.3 | EPTR00115 |
| 55 | 9PzB495 | 495 | 157 | 157.5 | 430 | 33.3 | EPTR00116 |
| 55 | 10PzB550 | 550 | 173 | 157.5 | 430 | 36.7 | EPTR00117 |
| 65 | 2PzB130 | 130 | 45 | 157.5 | 485 | 9.5 | EPTR00118 |
| 65 | 3PzB195 | 195 | 61 | 157.5 | 485 | 13.4 | EPTR00119 |
| 65 | 4PzB260 | 260 | 77 | 157.5 | 485 | 17.4 | EPTR00120 |
| 65 | 5PzB325 | 325 | 93 | 157.5 | 485 | 21.2 | EPTR00121 |
| 65 | 6PzB390 | 390 | 109 | 157.5 | 485 | 25.2 | EPTR00122 |
| 65 | 7PzB455 | 455 | 125 | 157.5 | 485 | 29.1 | EPTR00123 |
| 65 | 8PzB520 | 520 | 141 | 157.5 | 485 | 33.2 | EPTR00124 |
| 65 | 9PzB585 | 585 | 157 | 157.5 | 485 | 37.7 | EPTR00125 |
| 65 | 10PzB650 | 650 | 173 | 157.5 | 485 | 41.5 | EPTR00126 |
| 75 | 2PzB150 | 150 | 45 | 157.5 | 545 | 10.7 | EPTR00127 |
| 75 | 3PzB225 | 225 | 61 | 157.5 | 545 | 15.2 | EPTR00128 |
| 75 | 4PzB300 | 300 | 77 | 157.5 | 545 | 19.7 | EPTR00129 |
| 75 | 5PzB375 | 375 | 93 | 157.5 | 545 | 24.0 | EPTR00130 |
| 75 | 6PzB450 | 450 | 109 | 157.5 | 545 | 28.5 | EPTR00131 |
| 75 | 7PzB525 | 525 | 125 | 157.5 | 545 | 32.9 | EPTR00132 |
| 75 | 8PzB600 | 600 | 141 | 157.5 | 545 | 37.5 | EPTR00133 |
| 75 | 9PzB675 | 675 | 157 | 157.5 | 545 | 42.4 | EPTR00134 |
| 75 | 10PzB750 | 750 | 173 | 157.5 | 545 | 46.7 | EPTR00135 |
| 85 | 2PzB170 | 170 | 45 | 157.5 | 595 | 11.7 | EPTR00137 |
| 85 | 3PzB255 | 255 | 61 | 157.5 | 595 | 16.7 | EPTR00138 |
| 85 | 4PzB340 | 340 | 77 | 157.5 | 595 | 21.8 | EPTR00139 |
| 85 | 5PzB425 | 425 | 93 | 157.5 | 595 | 26.7 | EPTR00140 |
| 85 | 6PzB510 | 510 | 109 | 157.5 | 595 | 31.7 | EPTR00141 |
| 85 | 7PzB595 | 595 | 125 | 157.5 | 595 | 36.7 | EPTR00142 |
| 85 | 8PzB680 | 680 | 141 | 157.5 | 595 | 41.9 | EPTR00143 |
| 85 | 9PzB765 | 765 | 157 | 157.5 | 595 | 47.5 | EPTR00144 |
| 85 | 10PzB850 | 850 | 173 | 157.5 | 595 | 52.3 | EPTR00145 |
| 100 | 2PzB200 | 200 | 45 | 157.5 | 635 | 12.7 | EPTR00156 |
| 100 | 3PzB300 | 300 | 61 | 157.5 | 635 | 18.1 | EPTR00157 |
| 100 | 4PzB400 | 400 | 77 | 157.5 | 635 | 23.6 | EPTR00158 |
| 100 | 5PzB500 | 500 | 93 | 157.5 | 635 | 29.0 | EPTR00159 |
| 100 | 6PzB600 | 600 | 109 | 157.5 | 635 | 34.5 | EPTR00160 |
| 100 | 7PzB700 | 700 | 125 | 157.5 | 635 | 39.9 | EPTR00161 |
| 100 | 8PzB800 | 800 | 141 | 157.5 | 635 | 45.5 | EPTR00162 |
| 100 | 9PzB900 | 900 | 157 | 157.5 | 635 | 51.5 | EPTR00163 |
| 100 | 10PzB1000 | 1000 | 173 | 157.5 | 635 | 56.8 | EPTR00164 |
| 108 | 2PzB216 | 216 | 45 | 157.5 | 710 | 14.1 | EPTR00174 |
| 108 | 3PzB324 | 324 | 61 | 157.5 | 710 | 20.2 | EPTR00175 |
| 108 | 4PzB432 | 432 | 77 | 157.5 | 710 | 26.3 | EPTR00176 |
| 108 | 5PzB540 | 540 | 93 | 157.5 | 710 | 32.3 | EPTR00177 |
| 108 | 6PzB648 | 648 | 109 | 157.5 | 710 | 38.4 | EPTR00178 |
| 108 | 7PzB756 | 756 | 125 | 157.5 | 710 | 44.4 | EPTR00179 |
| 108 | 8PzB864 | 864 | 141 | 157.5 | 710 | 50.7 | EPTR00180 |
| 108 | 9PzB972 | 972 | 157 | 157.5 | 710 | 57.3 | EPTR00181 |
| 108 | 10PzB1080 | 1080 | 173 | 157.5 | 710 | 63.2 | EPTR00182 |
